Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized

Product Categories

Chengdu Xiofitec Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

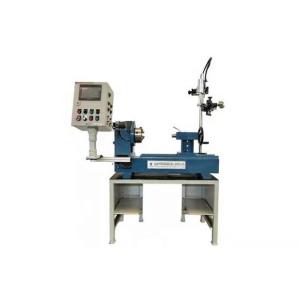

Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized

Name: Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized
Brand: XioFiTec/Hanyan
Price: 100 USD

China Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized wholesale

Certification : CE/ISO9001

Packaging Details : Wooden Box

Supply Ability : 10 Set/Sets per Month

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : Welding Manipulator

place of origin : Sichuan, China

brand name : HANYAN TECHNOLOGY

warranty : 1 Year

weight (kg) : 310

voltage : AC220V 10% 50/60Hz

current : 500A(Max.)

rated capacity : Depends on welding source

rated duty cycle : 100%

dimensions : 1520*920*1550MM

usage : Welding Automation

After-sales Service Provided : Engineers available to service machinery overseas

Customization : Available

Type : Other

Weight : 310KG

Applicable Industries : hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Engine

Key Selling Points : Low Noise Level

Port : any port in China

Contact Now

Product Description

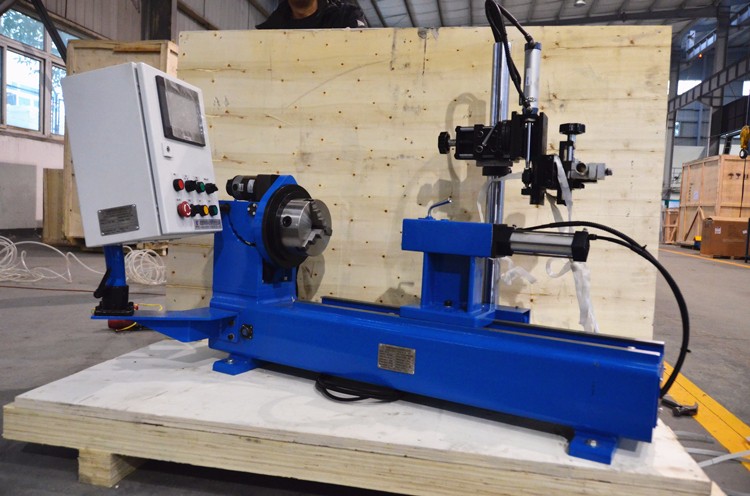

HGT-3C Precision Welding Lathe

Universality:
1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.
2. Can be used to weld Tubes/Pipes/Flanges/Cones and so on.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts.

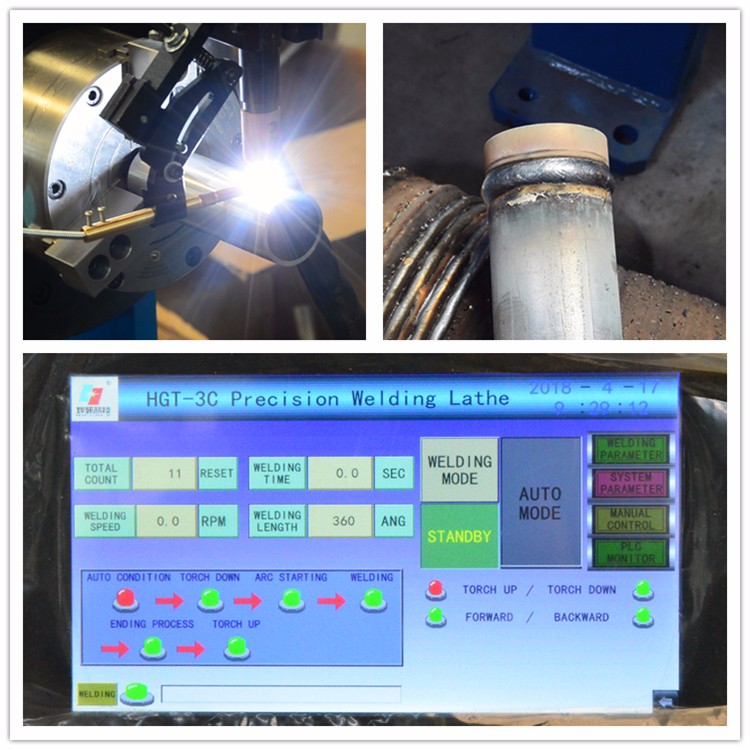

Detailed Images

Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized

Parameters

Item	Unit	HTC-3C	HF-300W	HF-300WS	HF-300L	HF-300LY
Max. workpiece’s length	mm	500	1200		-
Max. workpiece’s diameter	mm	350	550		600
Chuck’s working diameter	mm	10 - 120	10 - 200			-
Through-hole diameter	mm	30	50			-
Torch stroke(pneumatic)	mm	100				150
Tailstock stroke(pneumatic)	mm	-	150		-	-
Headstock rotating speed	RPM	1 - 10				0.6 - 6
Headstock angle	°	0°, 30°, 45°, 60°, 90°				-
Torch adjustment	mm	X: ± 30 mm Y:± 30mm Z: ± 30 mm
Max. welding current	A	500
Power input	V	AC 1 Phase 220V(±10%) 50Hz
Weight	kg	310	380	400	300	350
Package	CBM(m³)	1.45	2.39	2.39	1.08	1.37

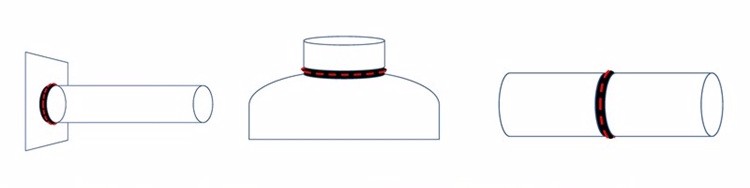

What can be welded

Automation Process

Manual

Except weld(include load&unload, position, torch adjustment, parameter set etc. )

Automatic

Weld

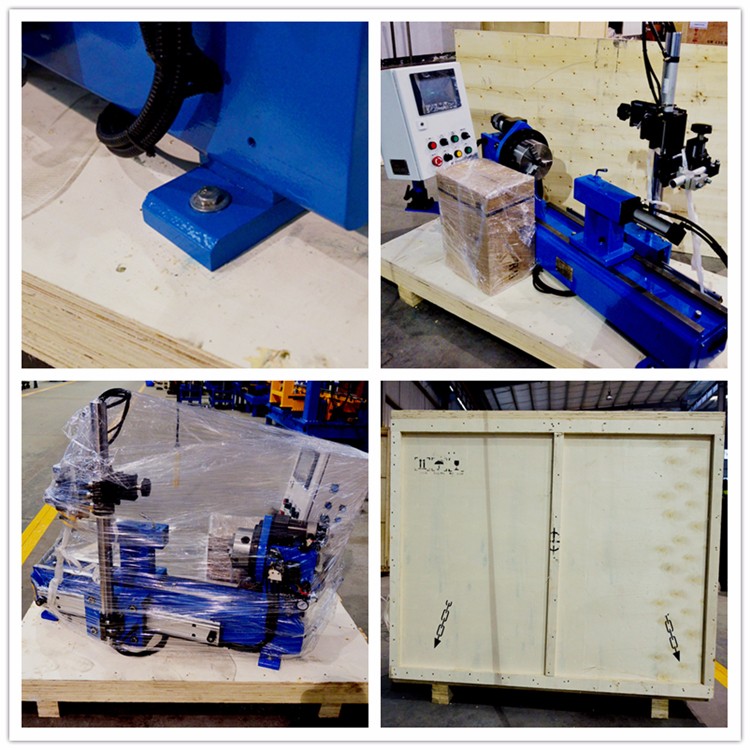

Packing & Delivery

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
