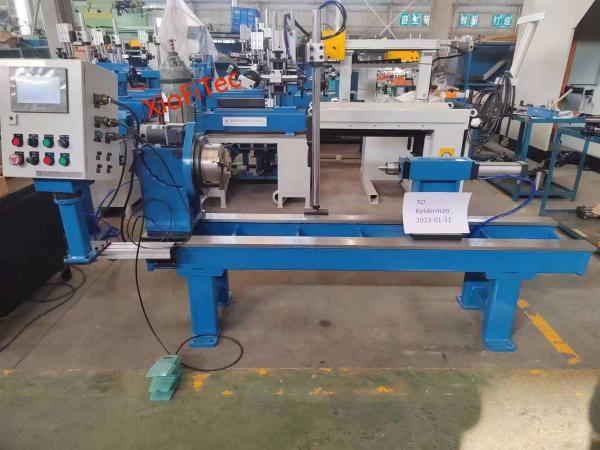

Model XF-300W Circumferential Seam Welding Machine Automatic 50Hz

Product Categories

Chengdu Xiofitec Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Model XF300W Circumferential Seam Welding Machine Automatic 50Hz
Brand: XioFiTec/Hanyan
Price: 100 USD

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

Place of Origin : CHINA

Price : 100

Power_Source : Electric

Welding_Type : Seam Welding

Welding_Frequency : 50Hz

Product_Name : Seam Welder Machine

Welding_Method : Automatic

Welding_Material : Metal

Packaging Details : Wooden Box

Contact Now

Circumferential welding seamers/welding lathes/seam welders/welding machine model

XF-300W

Model	XF-300W
control power source	Single-phase of 50Hz AC 200V
welding power source	Three-phase of 50Hz AC 380V
Weld workpiece thickness	According to the shape of welding groove
Diameter of wedling seam of workpiece	200mm ≥φ≥10mm
Effective length of the welding workpiece	≤1200mm
Turn speed of the chuck	1~10 Round / min
The workpiece rotates in diameter	φ≤550mm
Pass through diameter of spindle	φ≤50mm
Spindle output torque	≤72N m
Workpiece weight	≤50Kg
Pneumatic lift stroke of welding torch	100mm
Stroke of pneumatic tailstock	150mm
Adjustable angle of chuck	0°,30°,45°,60°,90°
The welding torch manually fine-adjusts the distance	X to ± 30mm, Y to ± 30mm, and Z to ± 50mm
Maximum allowable welding current of the host machine	500A
Concentricity accuracy of chuck	≦0.15mm
