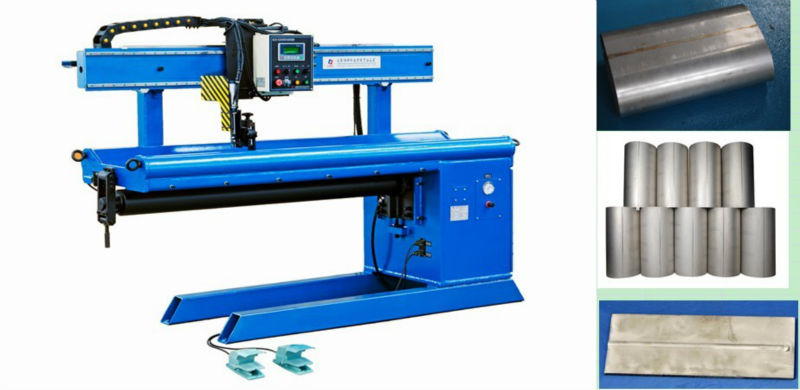

1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

Name: 1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
Brand: XioFiTec/Hanyan
Price: 100 USD

China 1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine wholesale

Certification : CE/CCC/ISO9001

Packaging Details : Wooden Box

Supply Ability : 2 Set/Sets per Month

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : Welding Positioner

place of origin : Sichuan, China

brand name : Hanyan Technology

warranty : 1 Year, 12

weight (kg) : 1550

voltage : 220/380

current : MAX. 500A (weld)

dimensions : 12475*1110*1850

usage : Welding fixture and controller

After-sales Service Provided : Engineers available to service machinery overseas

welding bed : ZF-1500

welding power : 380V

control power : 220V

service : available

color : depends

Weight : 1550Kg

Type : Other

Applicable Industries : Manufacturing Plant

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Bearing

Key Selling Points : High Safety Level

Port : Shanghai

Contact Now

Welding Fixture And Controller For 1500mm Automated Tank Shell Longitudinal Welder Straight Seam Lap Over Welding Machine

1. Weldable workpiece:

Diameter	155 – 700mm
Length	1500mm (max.)
Thickness	0.5 – 6.0 mm
Type	Tubular shell/Metal plate, longitudinal seam

2. Main technical parameters:

Model	ZF1500
Controller power supply	Single phase 50Hz AC 200V
Welding power supply	Three phase 50Hz AC 380V
Workpiece thickness	0.5~6.0mm
Workpiece diameter	700mm≥φ≥155mm
Workpiece length	≤1500mm
Carriage speed range	100~1800mm/min
Torch lifting height	100mm
Torch position adjustable range	Y: ±30mm, Z: ±30mm
Max. welding current	500A

It's a standard welding equipment, but we also can provide CUSTOMER DRIVEN SOLUTION to automate your welding application. If you have special welding needs, please fill your requirements in the following sheet and send back to us, we'll give you a professional welding solution within 3 working days.

Basics
Name of workpiece
Material
Material name
Material mark
Thickness
Dimension
Diameter
Width
Height
Length
Joint type
Butt joint
Lap joint
Fillet joint

1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

3. Some other standard welding equipments:

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!

Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.
We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

Visit

In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

In our factory:
