1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

Name: 1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine
Brand: XioFiTec/Hanyan
Price: 100 USD

China 1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine wholesale

Certification : ISO9001

Packaging Details : Wooden Box

Supply Ability : 10 Set/Sets per Quarter

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : Welding Positioner

place of origin : Sichuan, China

brand name : HANYAN TECHNOLOGY

warranty : 1 Year

weight (kg) : 1000

voltage : 220V/380V

current : Depends on welding

rated capacity : 1KVA

rated duty cycle : 100%

dimensions : 2700x1700x2200mm

usage : stator welding

welding process : TIG

Weight : 2000kg

After-sales Service Provided : Field installation, commissioning and training

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Bearing, Gearbox, motor, Gear

Key Selling Points : Automatic

Port : Shanghai

Contact Now

Product Description

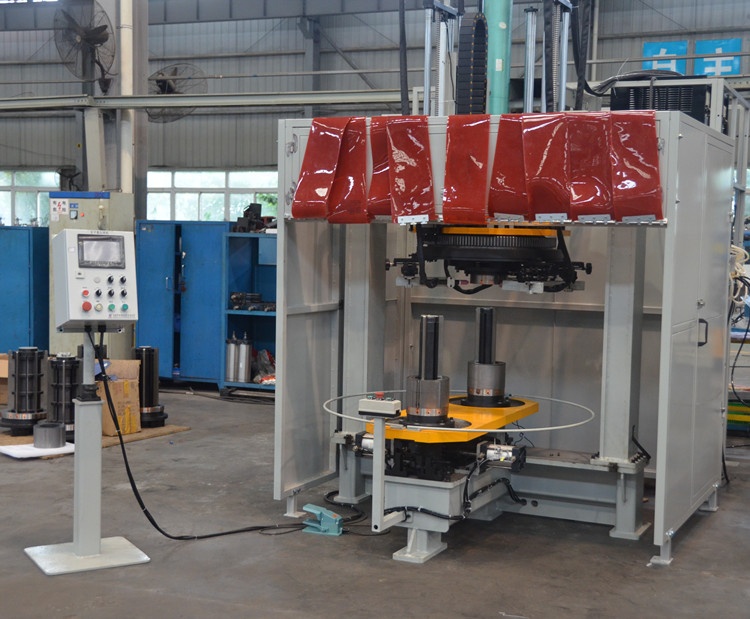

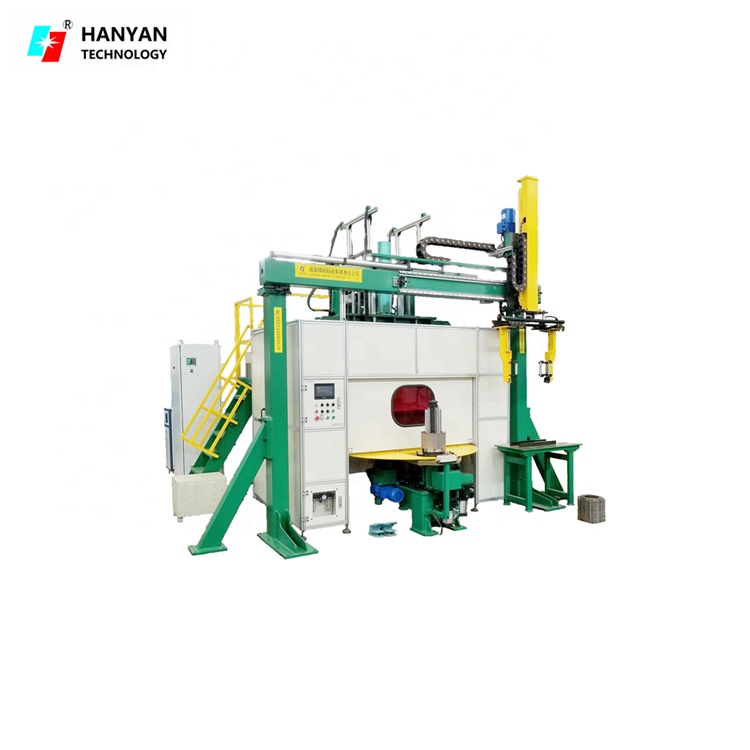

automatic new energy electric motor stator rotor lamination stack TIG welding machine

Main parameter:

u Weld seams: 4 lines, 8 lines

u Turntable rotation: 360°

u Measurement height error: 0.2mm

u Inner diameter of iron core: Φ331mm

u Outer diameter of iron core: Φ535mm

u Core height: 225mm

u Gun travelling length: 400mm

u The welding speed: 100~1500mm/min

u Pressing head maximum force: 500kN

u Lifting stroke of pressing head: 600mm

u Welding current range: 10~400 A

u Duty cycle: 60%

u Rated input capacity: 70KVA

u Argon flow: 60L/min

u Power input: 3 Phase 50Hz 380V

u Compressed air: ≥0.4MPa

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

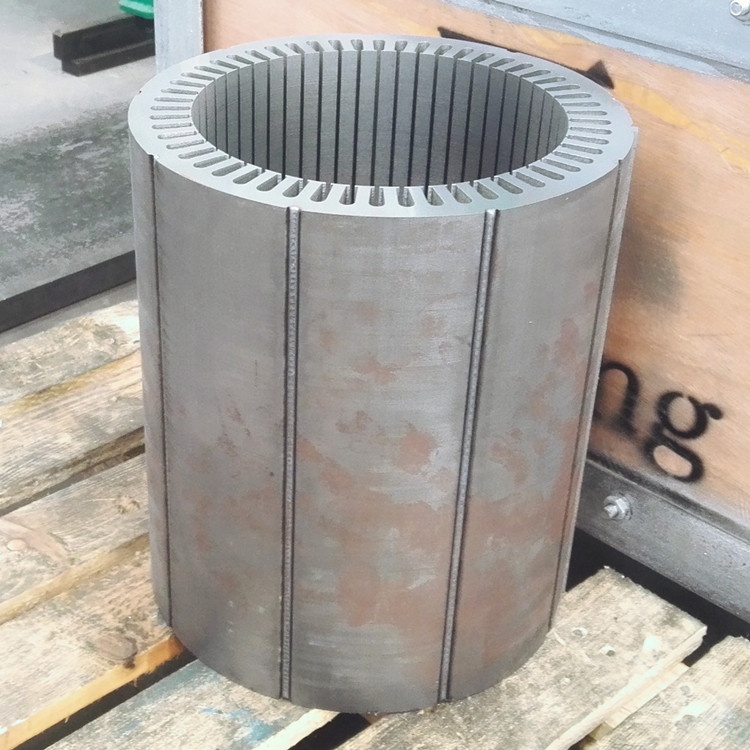

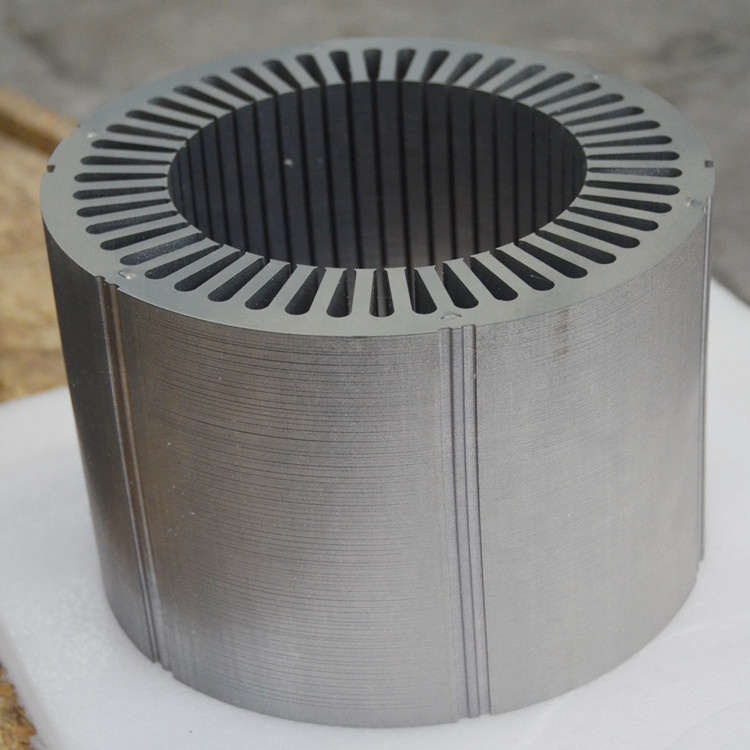

l Workpiece: stator silicon steel sheet lamination

l Specifications:

Inner diameter range: Φ331mm;

Outside diameter range: Φ535mm;

Height range: 225mm;

Maximum weight: 40Kg.

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

In our factory:

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine
