Customized Robot Welding Jig 150VA For Half Housing And Triangle Assembly

  • 1
  • 2
  • 3

Certification : ISO9001:2008

Packaging Details : Wooden Box

Supply Ability : 100 Set/Sets per Quarter

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : Welding robot

place of origin : Sichuan, China

brand name : Hanyan Technology

warranty : 1 Year, 12 months

weight (kg) : 30

voltage : 220V

current : depends on welding

rated capacity : 150VA

rated duty cycle : 100%

dimensions : Depends on workpiece

usage : jig for welding

After-sales Service Provided : Engineers available to service machinery overseas

jigs : customized

conditon : new

Type : Other

Weight : 70-2000kg

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Bearing, motor, Gear

Key Selling Points : High-accuracy

Port : Shanghai

Contact Now

Product Description

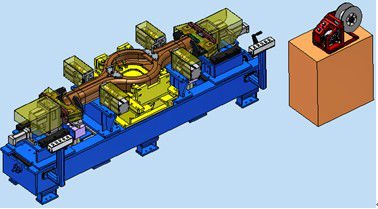

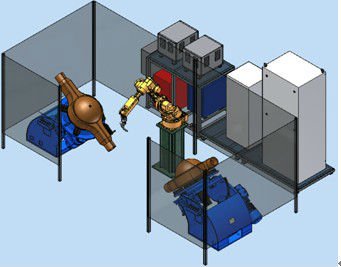

welding Jigs for tacking and assembly of half housing and triangle

1) Tacking object: Half axle housing and triangle

2) Equipment introduction of welding jig:

The jigs for assembly and tacking of half housing and triangle are mainly used in the assembly and tacking of rear half axle housing and triangle. The metal CO2 gas shielded welding process is used. The half axle housing at the upper part and the lower part is placed in the tacking jigs. The self-centering mechanism is taken to position the axial direction of half housing, the axis of workpiece is positioned with self-centering clamped jigs at both sides, hydraulic puller jigs realize the press-fitting of half axle housing, and the pressure head is adjustable. Handheld triangle is equipped to support the positioning jig to position triangle. After the tacking of one side is finished, the pneumatic climbing mechanism inside the lathe bed makes workpiece climb to the high position and then rotate. After the rotation is completed, the bracket puts the workpiece back to the jig body, and then the positioning, clamping and tacking of the workpiece is carried out once again.

3) Checklist of equipment configuration:

Serial No.

Model & Specification

Quantity

Remark

1

Working table for tack

1

2

Hydraulic self-centering jig

1

3

Self-centering clamped jig at ends

2

4

Hydraulic puller jig

2

5

Climbing bracket

2

6

Manual welding machine

1

Optional

7

Hydraulic station

1

5) Major technical parameters:

Effective length of weldable workpiece

1000-1500mm

Weight of weldable workpiece

≤200Kg

Stroke of hydraulic self-centering jig

150mm

Stroke of hydraulic puller jig

50mm

Stroke of climbing bracket

300mm

Welding power supply

380V 3 50HZ

380V 3 phase 50HZ

Control power supply

220V 50HZ

220V single phase 50HZ

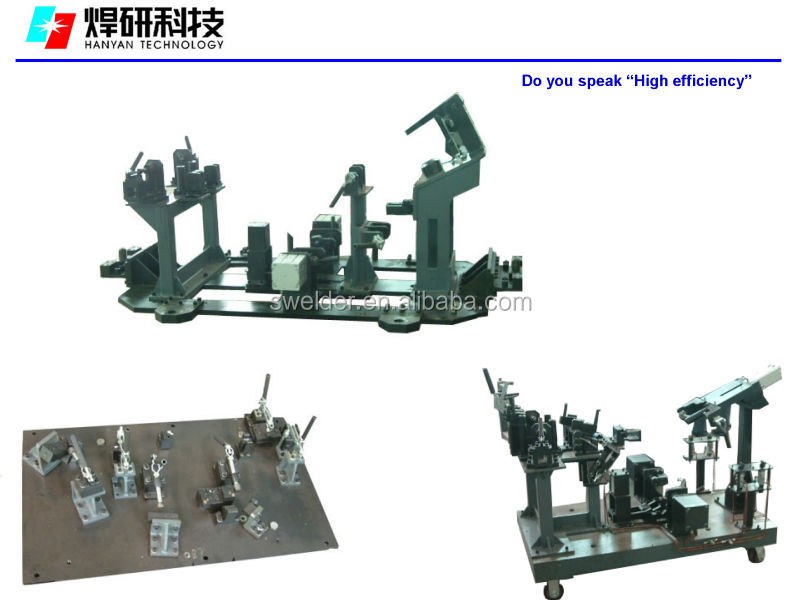

Customized Robot Welding Jig 150VA For Half Housing And Triangle AssemblyCustomized Robot Welding Jig 150VA For Half Housing And Triangle AssemblyCustomized Robot Welding Jig 150VA For Half Housing And Triangle AssemblyCustomized Robot Welding Jig 150VA For Half Housing And Triangle Assembly

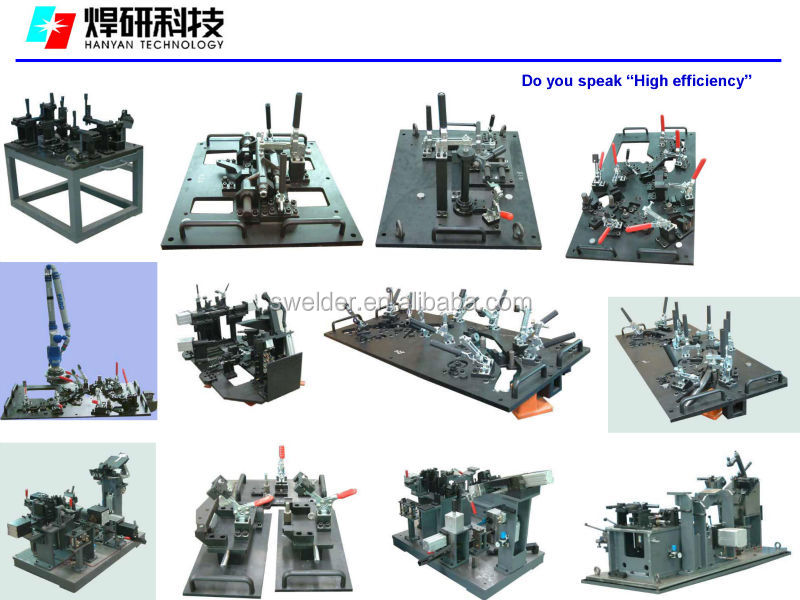

Customized Robot Welding Jig 150VA For Half Housing And Triangle AssemblyCustomized Robot Welding Jig 150VA For Half Housing And Triangle AssemblyCustomized Robot Welding Jig 150VA For Half Housing And Triangle Assembly

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Customized Robot Welding Jig 150VA For Half Housing And Triangle Assembly

In our factory:

Customized Robot Welding Jig 150VA For Half Housing And Triangle Assembly

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

Customized Robot Welding Jig 150VA For Half Housing And Triangle Assembly
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Customized Robot Welding Jig 150VA For Half Housing And Triangle Assembly
