1. Introduction
1.1. Application:
HF-300L vertical girth welding lathe is a kind of general auxiliary equipment of automatic welding machine, and can be used with different welding sources, it can constitute an automatic girth welding system with argon arc welding machine (supporting the use of wire feeder), CO2/MAG/MIG welding machine, plasma welding machine or other welding machines, to improves welding quality and speed, and lowers costs.

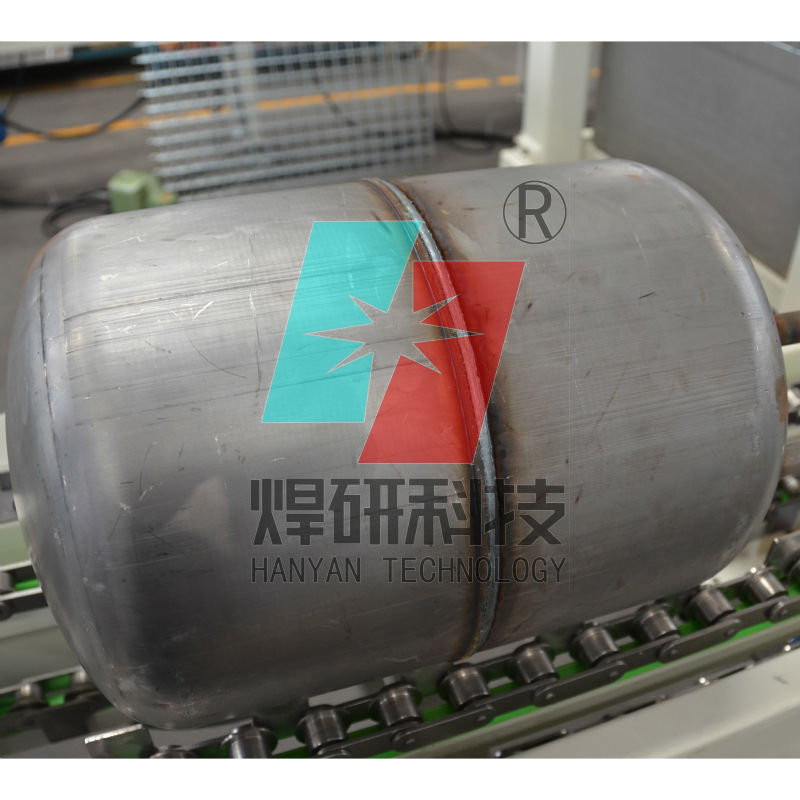

1.1.1. Type of Workpiece: pipe, plate, flange, etc.
1.1.2. Base Material: carbon steel, stainless steel, aluminum, copper, titanium.
1.2. Components:

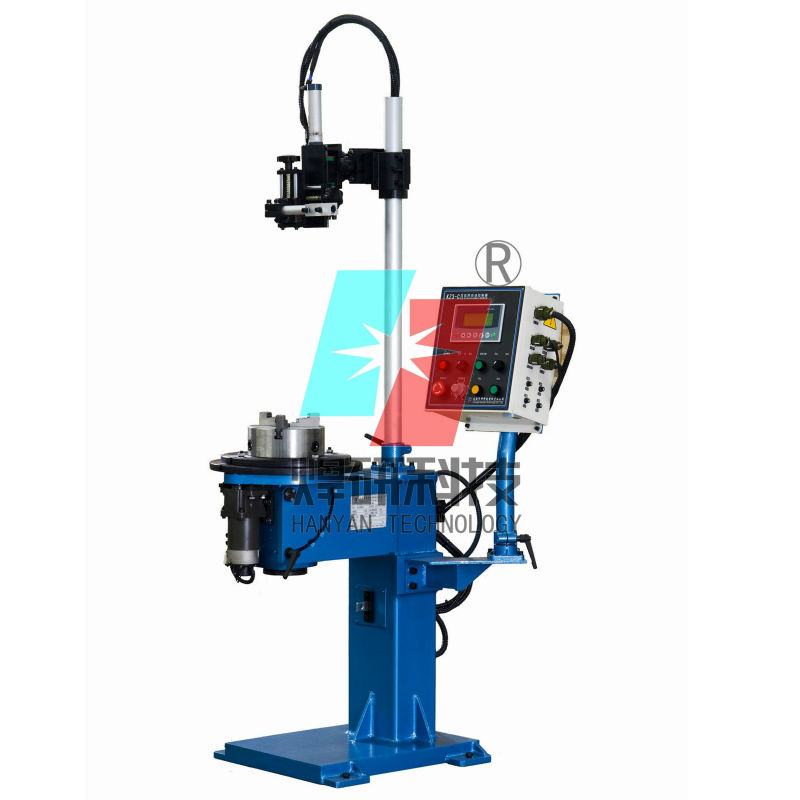

HF-300L vertical girth welding lathe is composed by rotation headstock, rectangular support,pneumatic lifter, 3-D manual adjusting mechanism and centre master controller. Angle of jaw chuck is adjustable (0°/30°/45°/60°/90°), manual 3-jaw chuck suit to more workpiece, advanced PLC controlling system, humanized operation interface, high degree automation, stable and reliable performance. It’s a combined structure with good mobility, and easy installation.
1.3. Welding Process:
1.3.1. Welding Mode: torch fixed, workpiece rotating, weld automatically.
1.3.2. Welding Method: TIG (supporting the use of wire feeder)/MIG/MAG/PAW.
2. Technical Parameters
| Model | HF-300L |
| Control power supply | Single phase 50Hz AC 200V |
| Welding power supply | Three phase 50Hz AC 380V |
| Workpiece thickness | According to the welding form |
| workpiece diameter | 200mm≥φ≥10mm |
| Headstock rotating speed | 1~10 r/ min |
| Workpiece rotation diameter | ≤600mm |
| Spindle bore | ≤50mm |
| Spindle output torque | ≤72N·m |
| Workpiece weight | ≤50Kg |
| Torch lifting height | 100mm |
| Faceplate height | 900 mm (horizontal position) |
| Jaw chuck adjustable angle | 0°/30°/45°/60°/90° |
